Samsung AR80 24,000 BTU (6.5 kW) Inverter – Wall Split
The largest unit in the AR80 wall split range, for open-plan living areas, double-volume spaces and larger offices. It delivers 22,179 BTU/h of cooling and 23,544 BTU/h of heating with the highest heating efficiency in the range at a COP of 3.45. AI WindFree™ keeps the airflow gentle even at this capacity, and the Motion Detect Sensor stops you cooling an empty room.
Unit supplied only nationwide. To add installation, select Installed Back to Back (JHB).
Key Features
- AI WindFree™ – fast, even cooling with no cold draft
- Motion Detect Sensor – automatically adjusts cooling to your movement
- PM 1.0 Filter – captures ultra-fine particles
- Freeze Wash + Auto Clean – frosts the heat exchanger, then washes dirt away
- SmartThings Wi-Fi with AI Auto Cooling, AI Inverter and AI Diagnosis
- Dry Comfort dehumidification, Good Sleep, Eco Mode, Smart Quiet
- Twin compressor outdoor unit with high-efficiency fan, new slim design
- BLDC compressor, anti-corrosion outdoor fins, R32 refrigerant
Performance
- Cooling: 22,179 BTU/h (6.50 kW) • Heating: 23,544 BTU/h (6.90 kW)
- Cooling range: 4,913 – 26,956 BTU/h • Heating range: 4,504 – 30,368 BTU/h
- EER (cooling): 3.32 W/W • COP (heating): 3.45 W/W
- Energy class: Cooling A • Heating A+
- Indoor noise: 44/28 dB(A) (High/Low) • Outdoor: 54 dB(A)
Specifications
- Power: 1Φ, 220–240 V~, 50 Hz
- Power consumption: Cooling 1,960 W, Heating 2,000 W
- Operating current: Cooling 8.8 A, Heating 8.8 A
- Refrigerant: R32 (charge 1.15 kg)
- Piping: Max 30 m; Height difference 15 m; Liquid 6.35 mm (1/4″); Gas 15.88 mm (5/8″)
- Moisture removal: 2.30 L/h • Air circulation: 15.40 m³/min
- Operating range: Cooling −10 to 46 °C • Heating −15 to 24 °C
- Dimensions (W×H×D): Indoor 1,055×299×215 mm; Outdoor 880×638×310 mm
- Net weight: Indoor 13.1 kg; Outdoor 38.6 kg
- Model code: AR80F24CADW/FA
Installation and delivery
- Supplied nationwide, or installed in Gauteng within 30 km of Midrand
- Back to back installation (indoor unit in front, outdoor unit directly behind)
- Additional materials charged separately – piping at R300/m, trunking at R275 per 3 m length
- Does not include electrical to the distribution board. The unit is connected to an existing electrical connection, or you arrange an electrical connection with your own electrician
- Once payment is made, our team will be in contact shortly to arrange installation

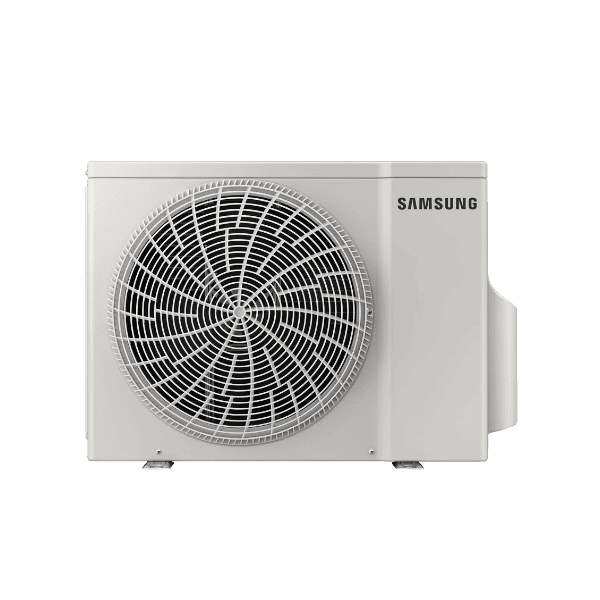

- Pictures of outdoor units may differ from actual, depending on the model
- 12 Month Standard Warranty. Extended warranty of 5 years on all parts and 10 years on the compressor available. Terms and conditions apply.
Note: The AR80 is Samsung’s premium wall split, positioned above the AR70. The AR70 carries the 4-in-1 Care Filter; the AR80 uses the PM 1.0 Filter and adds a Motion Detect Sensor and twin compressor outdoor unit.
